Парт.№: X870E_TSM
Кат.№: 151792
Кат.№: 151792
Цена с ДДС:
779 лв.
Цена с ДДС:
398.30€
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Вземи от магазина на Дейтаком >>> Виж адреса
| Подд. процесори: | AMD Socket AM5, support for:, AMD Ryzen™ 9000 Series Processors/, AMD Ryzen™ 8000 Series Processors/, AMD Ryzen™ 7000 Series Processors |
| Чипсет: | AMD X870E |
| Памет/тип/: | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules., 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is tobe installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Сторидж: | 1 x M.2 connector (M2A CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, 2 x M.2 connectors (M2C SB, M2D SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:, - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, * Support for DisplayPort 1.4 version and HDR, Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR., ** Support for native HDMI 2.1 TMDS compatible ports, - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, * Support for HDMI 1.4 version |
| Звук: | Realtek® ALC1220 CODEC, * The back panel line out jack supports DSD audio., High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings., Support for S/PDIF Out |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |

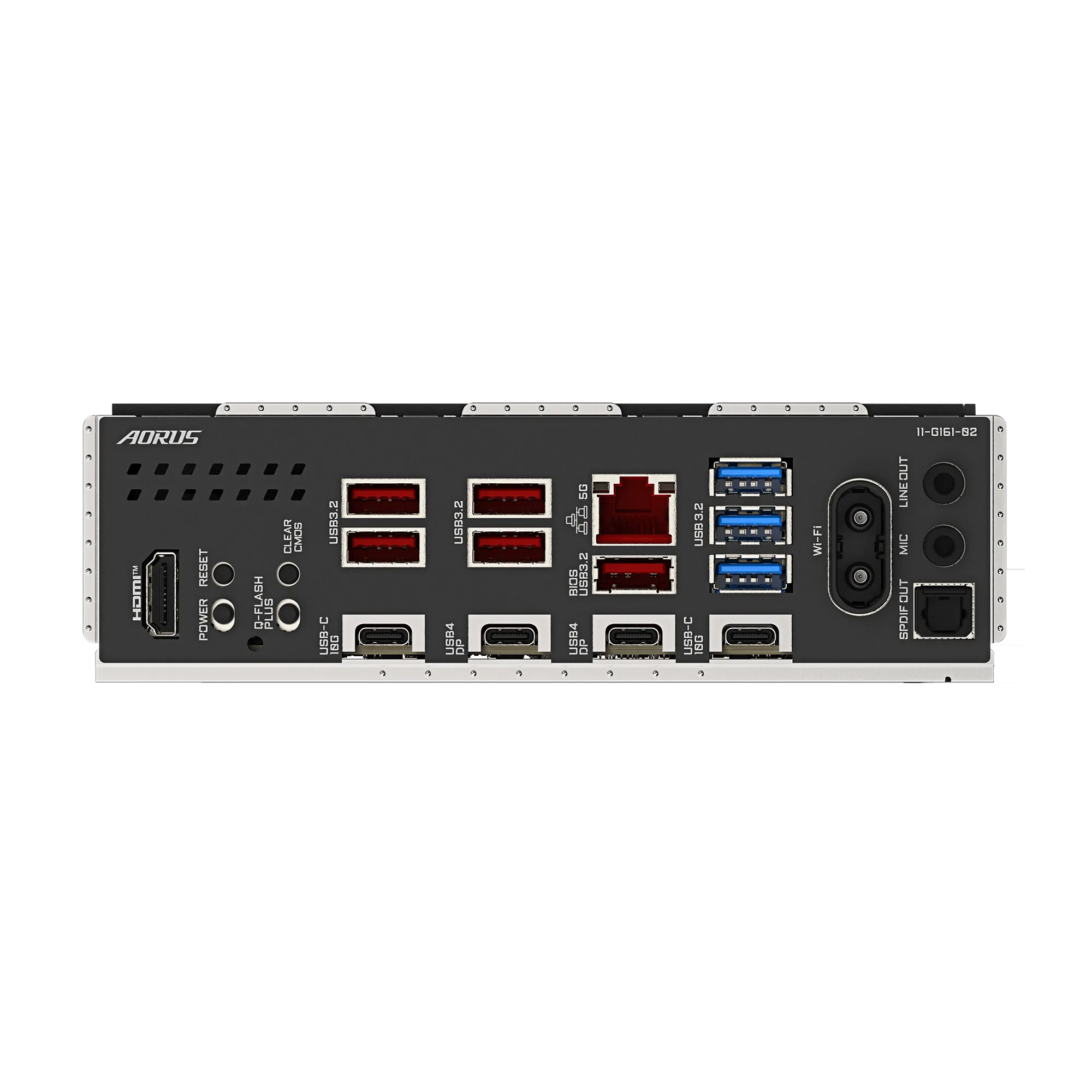

| Конектори: | 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x PCIe power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 4 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x noise detection header, 1 x HDMI port (Note), 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 2 x temperature sensor headers, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors, 1 x HDMI port (Note), 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x Q-Flash Plus button, 5 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB Type-C® ports, with USB 3.2 Gen 2 support, 2 x USB4® USB Type-C® ports (DisplayPort (Note)), 1 x RJ-45 port, 3 x USB 3.2 Gen 1 ports, 2 x antenna connectors (2T2R), 2 x audi |
| Форм фактор: | ATX Form Factor, 30.5cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit |
| BIOS: | 1 x 512 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU+ASMedia USB4® controller:, - 2 x USB4® USB Type-C® ports on the back pane, CPU:, - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, Chipset+USB 3.2 Gen 1 Hub:, - 4 x USB 3.2 Gen 1 ports available through the internal USB headers, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging), - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, - 3 x USB 3.2 Gen 1 ports on the back panel, - 4 x USB 2.0/1.1 ports available throughthe internal USB headers |

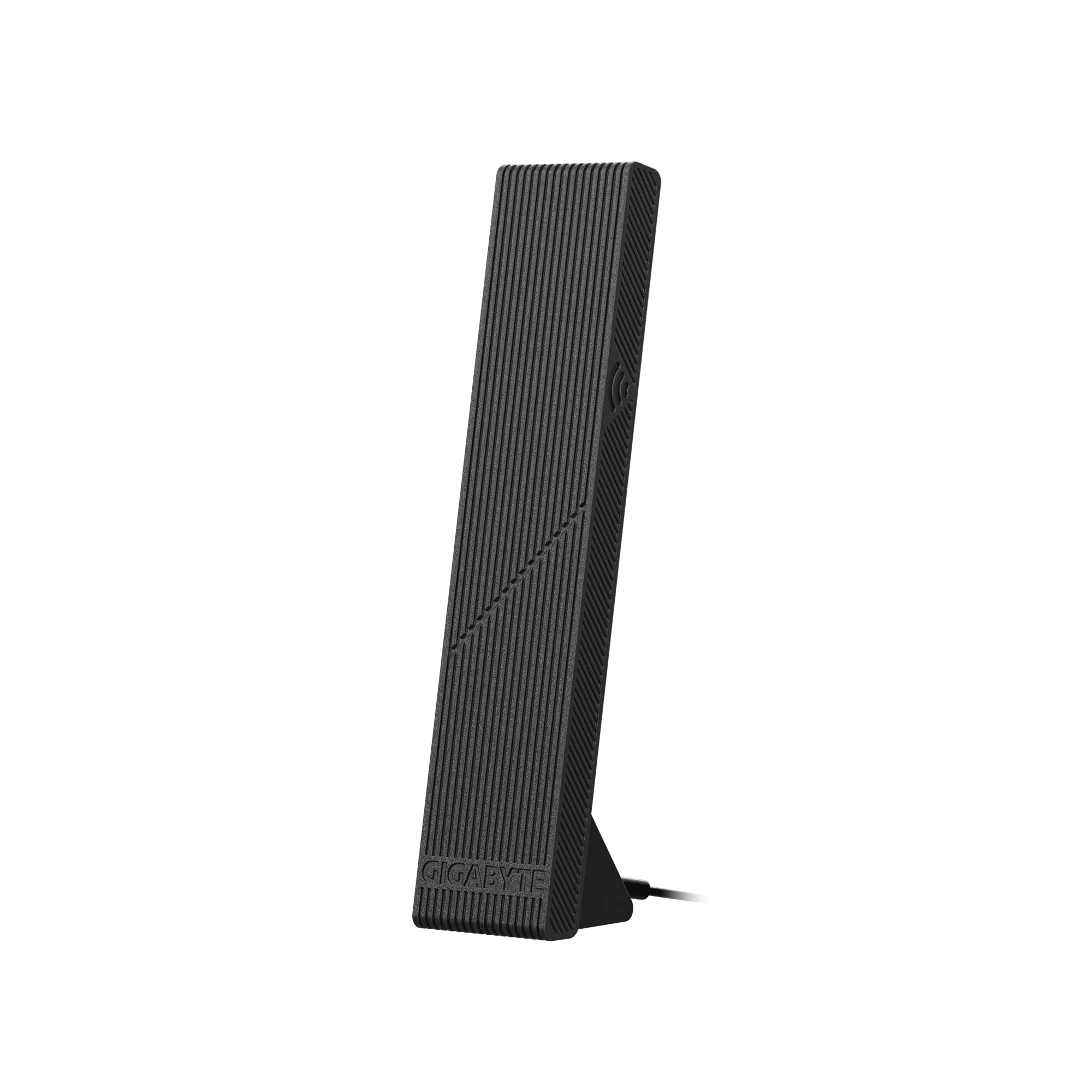

| Wireless: | Qualcomm® Wi-Fi 7 QCNCM865, - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.4, - Support for 11be 320MHz wireless standard, (Actual data rate may vary depending on environment and equipment.), * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There isno support driver for Windows 10.), ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations., ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| Features: | Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bluetooth: | 5.4 |
