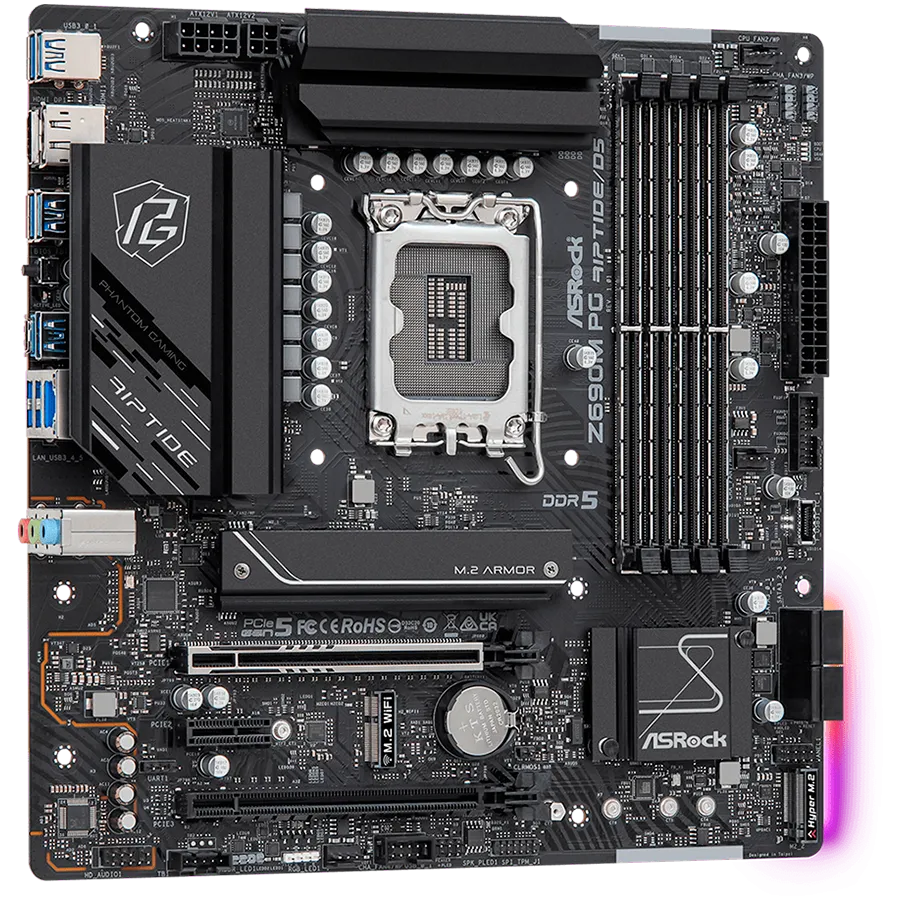

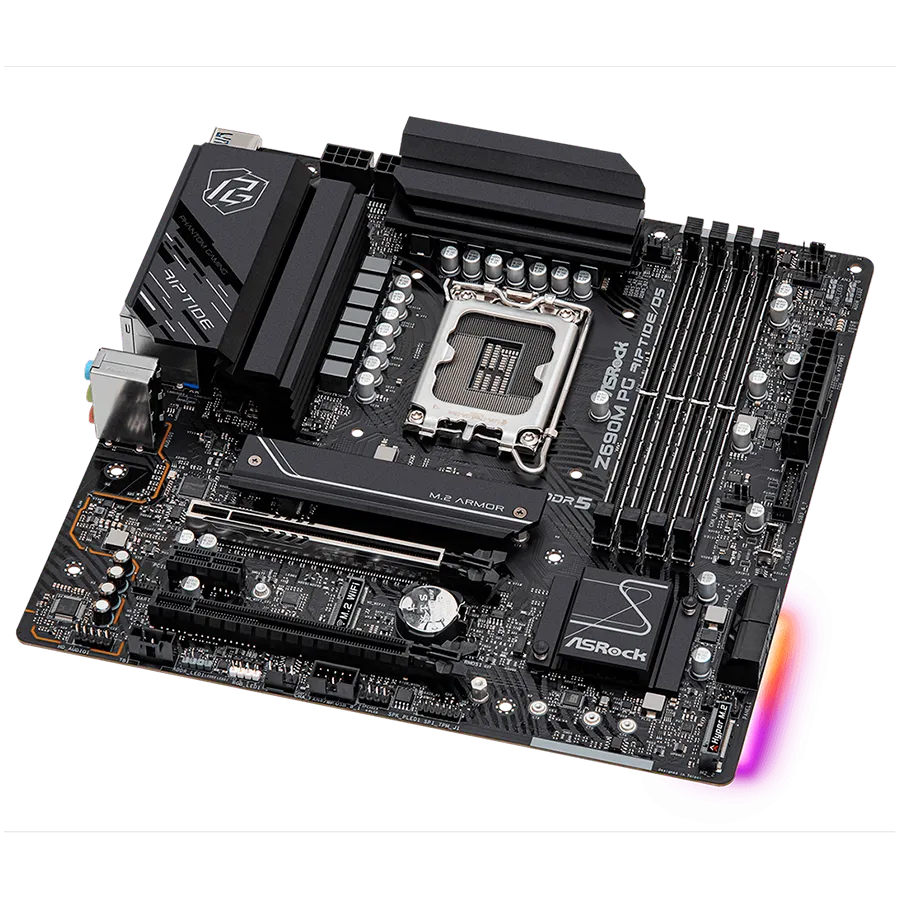

ASROCK Main Board Desktop Z690M PG Riptige/D5 (S1700, 4x DDR5, 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 4x SATA3 6.0Gb/s, 2x m.2 PCIe Gen4x4, RAID 0,1,5,10, 8x USB 3.2, 2x USB-C 1x RJ-45 2.5G Lan, HDMI, DP) ATX, Retail - Z690M PG RIPTIDE/D5
Парт.№: Z690M PG RIPTIDE/D5
Кат.№: 148793
Кат.№: 148793
Цена с ДДС:
382 лв.
Цена с ДДС:
195.31 €
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | Intel Z690 |
| Supports Central Processor Unit: | Intel 12th Gen Processors Intel 13th Gen Processors |
| CPU Socket Standard: | Socket 1700 |
| Architecture Features: | Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR5 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 4800MHz(PC5-38400) |
| Maximum Installable System Memory Storage Capacity: | 192 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | Two DDR Channels Unbuffered Twelve DDR Channel XMP 3.0 |
| Controller | |
| Integrated: | Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2 (Key M)) |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Video Output | |
| Video Controller Integrated: | yes |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio Nahimic Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Killer E3100G |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps |
| Slot Provided | |
| PCI Express 5.0 x16: | 1 |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |

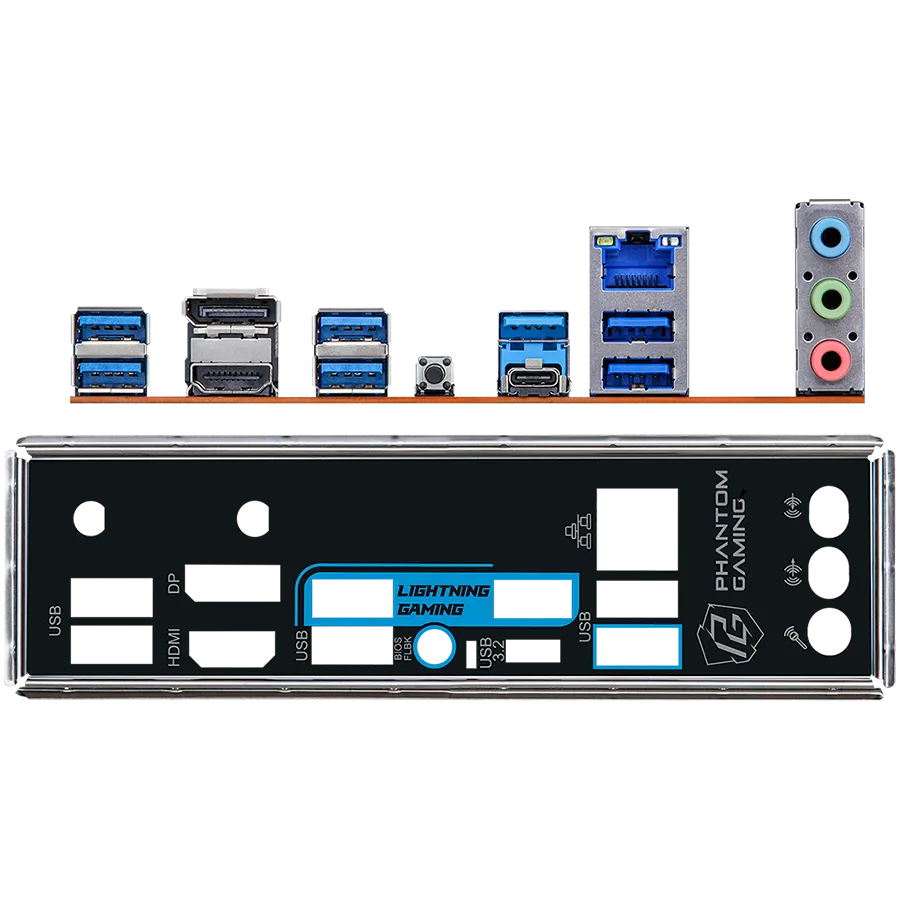

| Interface Provided | |
| USB 3.2 Gen 2: | 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A)) |
| USB 3.2 Gen 1: | 6 (USB 3.2 (type A)) |
| DisplayPort: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| Audio Interface: | 3 (3.5-mm minijack) |
| LAN: | 1 (RJ-45) |
| Antenna: | 2 |
| Main Board Desktop - Mainboard Features | |
| BIOS Features: | SMBIOS 2.7 Support PXE boot 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.0 Support |
| Wake up/Sleep: | Wake on LAN |
| Power Connectors Type: | 24+8+4 pin |
| Mainboard Features: | AMD CrossFire technology Intel Optane Memory Ready RGB LED |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 2 x SATA 6Gb/s Cables |
| Included Accessories: | CD, Software Quick Start Guide Screws |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 244 mm |
| Width (mm): | 244 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 0.45 kg |
| Pack Weight Netto (kg): | 0.35 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 0.45 kg |
| Retail Packaging Net Weight Carton: | 0.35 kg |
| Retail Packaging Net Weight Plastic: | 0.35 kg |
| Packs in Box: | 1 |

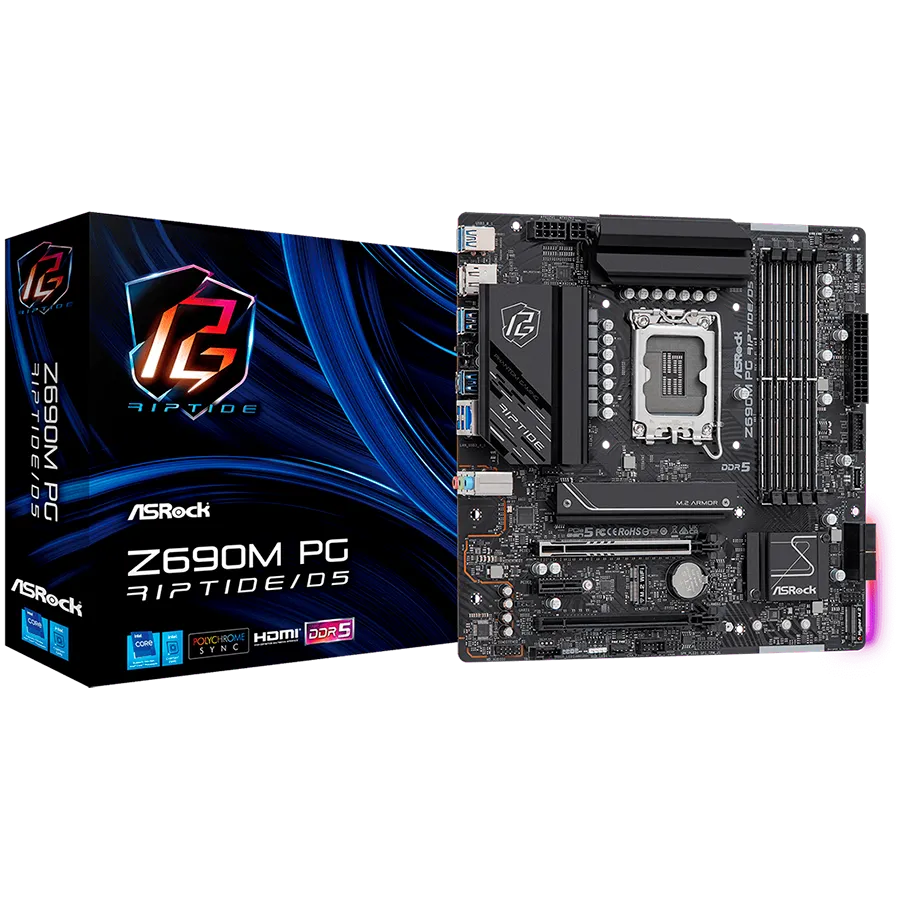

| Package Type: | Retail |
| EAN Code: | 4710483937378 |
