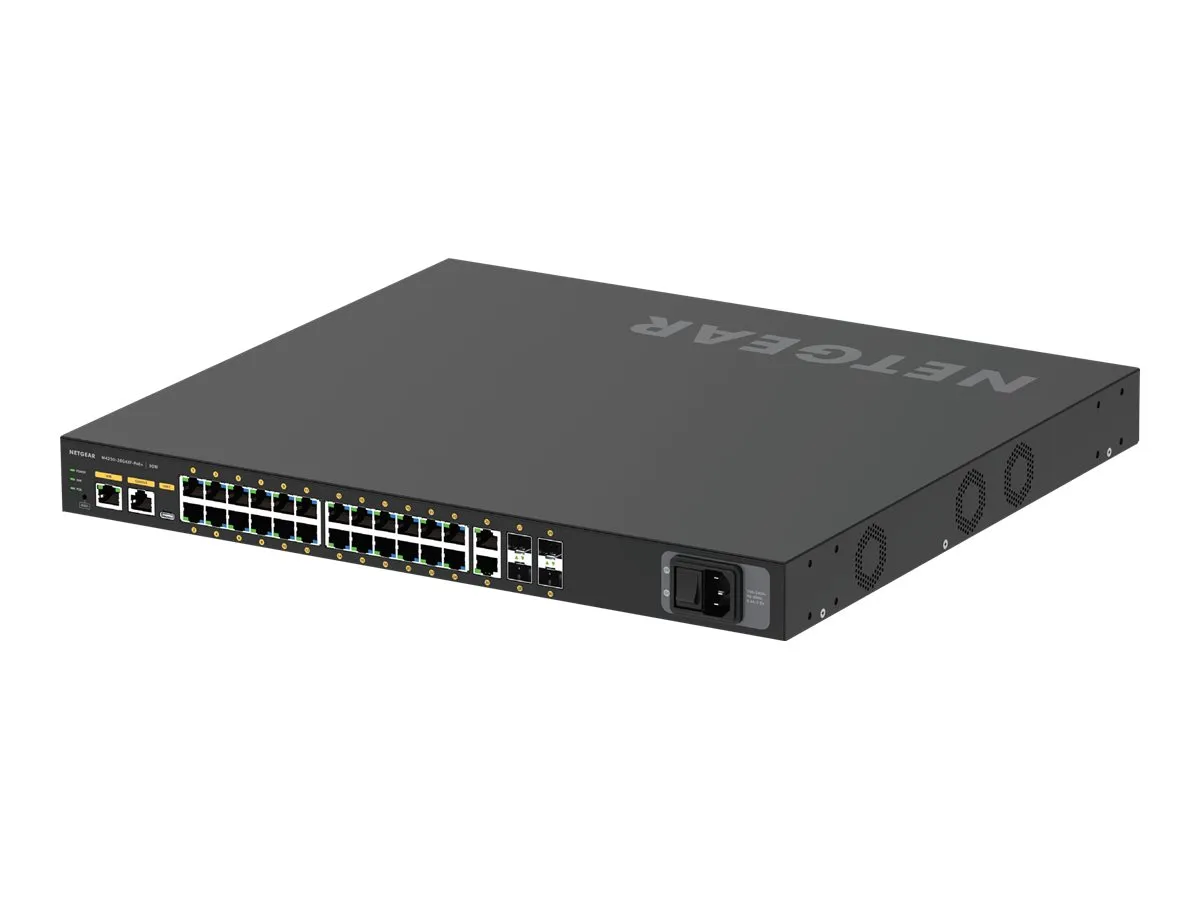

NETGEAR M4250-26G4XF-POE+ Managed Switch 26x Gigabit 24x PoE+ 4x SFP+ up to 480W Stackable - GSM4230PX-100EUS
Парт.№: GSM4230PX-100EUS
Кат.№: 146603
Кат.№: 146603
Цена с ДДС:
4915 лв.
Цена с ДДС:
2513.00 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Manufacturer: | NETGEAR |
| Manufacturer Part No: | GSM4230PX-100EUS |
| General | |
| Device Type: | Switch - 24 ports - L3 - Managed |
| Enclosure Type: | Side to side airflow rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 480 W |
| Performance: | Switching capacity: 132 Gbps Firewall throughput (64-byte packet size): 98.21 Mpps 1 Gbps fibre latency (64-byte packets): 1.13 μs 1 Gbps fibre latency (512-byte packets): 1.123 μs 1 Gbps fibre latency (1024-byte packets): 1.119 μs 1 Gbps fibre latency (1518-byte packets): 1.120 μs 1 Gbps copper latency (512-byte packets): 2.28 μs 1 Gbps copper latency (1024-byte packets): 2.282 μs 1 Gbps copper latency (1518-byte packets): 2.27 μs 1 Gbps copper latency (64-byte packets): 2.288 μs 10 Gbps fibre latency (64-byte packets): 0.834 μs 10 Gbps fibre latency (512-byte packets): 0.818 μs 10 Gbps fibre latency (1024-byte packets): 0.817 μs 10 Gbps fibre latency (1518-byte packets): 0.816 μs |
| Capacity: | ARP entries: 4000 NDP entries: 4000 Packet buffer size: 16 MB VLANs supported: 4093 IGMP multicast groups: 4000 QoS hardware queues: 8 IPv4 routes (static): 64 IPv6 routes (static): 64 RIP application route scaling (IPv4): 32 IPv4 groups (Multicast): 512 IPv6 groups (Multicast): 128 |
| MAC Address Table Size: | 16K entries |
| Jumbo Frame Support: | 12KB |
| Routing Protocol: | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Remote Management Protocol: | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Encryption Algorithm: | SSL 3.0, TLS 1.0, TLS 1.2, AES |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
| Features: | LAG, PIM, DHCP server, PTP, AVB, IPTV support, sFlow, RSPAN, auto-sensing per device, LLDP support, dual firmware images, Energy Efficient Ethernet, store and forward, Voice VLAN, 802.1x authentication, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP support, full duplex mode, flow control, UDLD, RPVST+, STP loop guard, STP Root Guard, STP BPDU Guard, STP BPDU Filtering, STP BPDU Flooding, IGMP snooping, MLD snooping, MGMD Snooping, IGMP proxy, MLD proxy, ASM, SSM, NDP, BOOTP support, DHCP relay, DNS client, ISDP, LLDP-MED, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, MACAL, MAB, Port Security, IP source guard, DHCP snooping, DAI, RA guard, MAC address filtering, DiffServ support, QoS, CoS, WRED, SP, DSCP support, SNTP support, port mirroring, cable test |
| Compliant Standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac |
| Processor: | X ARM: 1.8 GHz |
| RAM: | 2 GB |
| Flash Memory: | 256 MB |
| Status Indicators: | Power, PoE max, fan, port status |
| Expansion / Connectivity | |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 2 x 10/100/1000 Base-T RJ-45 4 x 1000Base-X/10GBase-X SFP+ 1 x management (Gigabit LAN) RJ-45 1 x management (RS-232) RJ-45 1 x USB-C 1 x USB Type A |
| Power | |
| Power Device: | Internal power supply |
| Installed Qty: | 1 |
| Power Consumption Operational: | 614 Watt |
| Power Consumption Stand by: | 33.9 Watt |
| Miscellaneous | |
| Included Accessories: | Rubber caps, rubber feet |
| Cables Included: | 1 x console cable 1 x USB-C to USB-A cable |
| Rack Mounting Kit: | Included |
| MTBF: | 509,057 hours |
| Compliant Standards: | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 60950-1, EN 62368-1, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, RCM, AS/NZS CISPR32:2013 Class A, GB 4943, FCC CFR47 Part 15 A, ANSI C63.4:2014, ICES-003:2016 issue 6 Class A, CNS 13438 Class A, CB, IEC 62368-1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, UL 1950, cUL, IEC 950, EN 60950, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, AS/NZS 60950-1:2015, CCC, CNS 14336-1 |
| Localisation: | Europe |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 40 cm |
| Height: | 4.32 cm |
| Weight: | 5.453 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime Limited warranty - technical support - 90 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 90% (non-condensing) |
| Min Storage Temperature: | -20 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 95% (non-condensing) |
