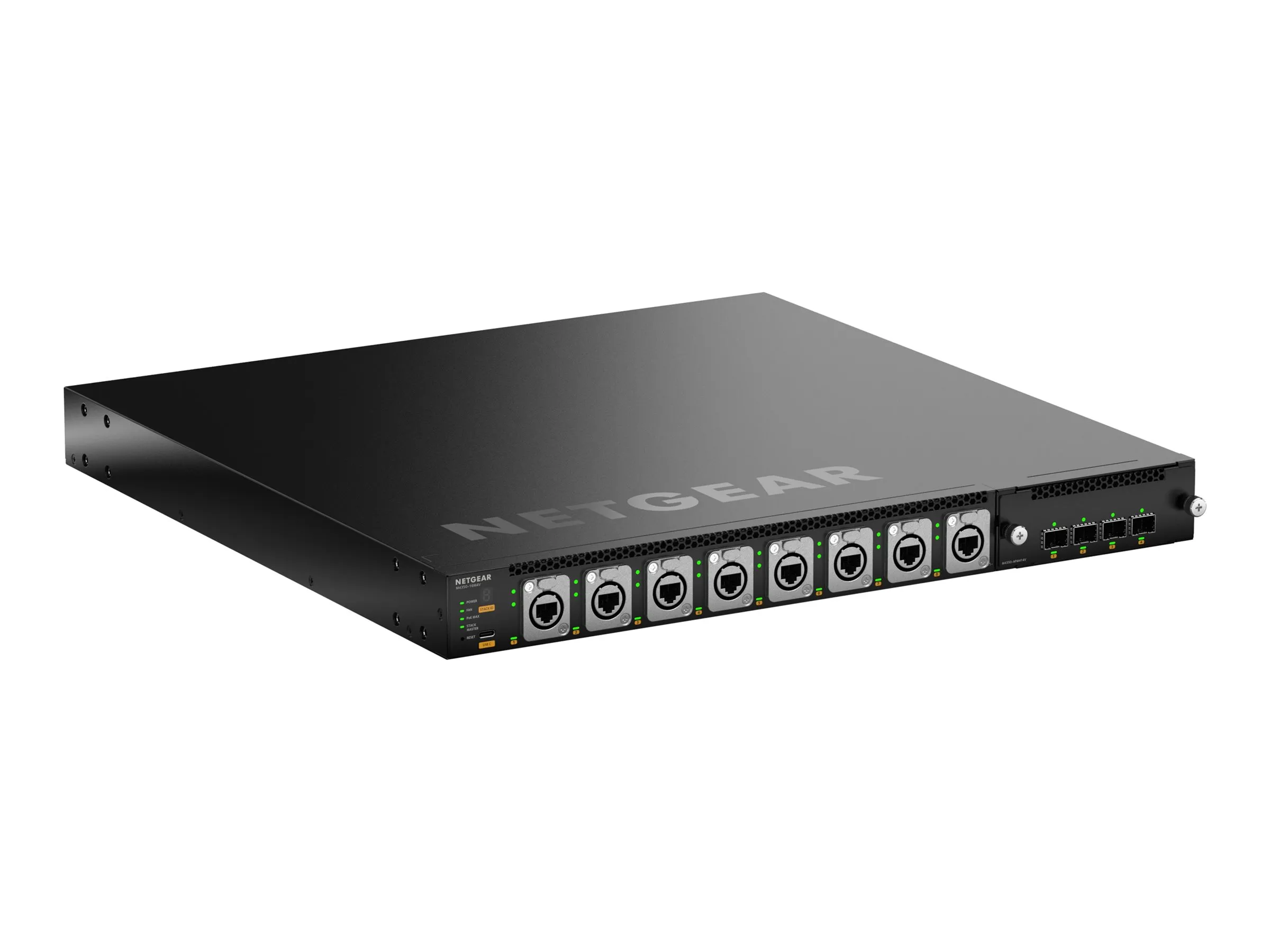

Парт.№: MSM4320-100NES
Кат.№: 159418
Кат.№: 159418
Цена с ДДС:
7557.00 €
на път
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 99 месеца
| Manufacturer: | NETGEAR |
| Manufacturer Part No: | MSM4320-100NES |
| General | |
| Device Type: | Switch - 20 ports - L3 - Managed - stackable |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Subtype: | 2.5 Gigabit Ethernet |
| Ports: | 16 x 2.5GBase-T (PoE ++) + 4 x 25 Gigabit SFP28 (uplink) |
| Power Over Ethernet (PoE): | PoE++ |
| PoE Budget: | 530 W |
| Performance: | Switch fabric speed: 280 Gbps Throughput (64-byte packet size): 208.3 Mpps Latency (2.5 Gbps): 5.5 µs 10 Gbps fibre latency (64-byte packets): < 0.70 µs Latency (25 Gbps): 0.70 μs |
| Capacity: | Packet buffer size: 32 MB Multicast entries (IPv4): 512 Multicast entries (IPv6): 256 VLANs supported: 4000 IGMP multicast groups: 2000 DHCP users: 2000 ARP entries: 4000 NDP entries: 512 DHCP pool (IPv4): 256 DHCP pool (IPv6): 16 |
| MAC Address Table Size: | 16K entries |
| Jumbo Frame Support: | 12KB |
| Routing Protocol: | Policy-based routing (PBR), static IP routing, OSPF, IGMPv2, IGMPv3, MLD, MLDv2, VRRP, RIP-1, RIP-2, OSPFv2, OSPFv3 |
| Remote Management Protocol: | DHCP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, UDP, TFTP, Telnet, Syslog, HTTP, HTTPS |
| Encryption Algorithm: | 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 1.2, SSL 3.0 |
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features: | Virtual Chassis technology, dynamic routing, PoE timer, PoE scheduling, EEE, store and forward, VLAN Tagging, IP subnet-based VLANs support, MAC based VLAN, Private VLAN, PVE, Subnet based VLAN, Voice VLAN, 802.1x authentication, Guest VLAN, GMRP, GVRP, MVR, MRP, MVRP, VLAN Double Tagging (Q-in-Q), Link Aggregation, Storm Control, UDLD, PVRST, PVST, STP BPDU Filtering, STP BPDU Flooding, STP BPDU Guard, STP loop guard, STP Root Guard, NETGEAR IGMP Plus, Expedited Leave function, MGMD Snooping, IGMP proxy, MLD proxy, BOOTP support, route redistribution, ICMP throttling, router discovery protocol, ISDP, sFlow, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, QoS, CoS, WDRR, Auto VoIP, DiffServ support, PTPv2 TC support, TSN, DHCP snooping, DAI, port mirroring |
| Compliant Standards: | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1BA, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, ANSI/TIA-1057 |
| Processor: | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM: | 4 GB DDR4 SDRAM |
| Flash Memory: | 512 MB |
| Built-in Devices: | 4 x fans |
| Status Indicators: | Fan, link/activity/speed, power, stack ID, PoE, PoE max |
| Expansion / Connectivity | |
| Interfaces: | 16 x 2.5GBase-T RJ-45 PoE++ 4 x 25GBase-X SFP28 1 x management (Gigabit LAN) RJ-45 out-of-band network management 2 x USB Type A 1 x console (USB) Type C |
| Power | |
| Power Device: | Internal power supply |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 |
| Power Provided: | 800 Watt |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Stand by: | 50.6 Watt |
| Miscellaneous | |
| Included Accessories: | Power cord, rubber caps, rubber feet, rack mounting brackets |
| Cables Included: | 1 x USB-C to USB-A cable |
| Rack Mounting Kit: | Included |
| MTBF: | 355,650 hours |
| Compliant Standards: | BSMI, CB, CCC, FCC, ISED, RCM, VCCI, UL |
| Localisation: | Europe, North America, United Kingdom |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 43.2 cm |
| Height: | 4.32 cm |
| Weight: | 7.85 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - hardware replacement - lifetime - response time: next business day Technical support - phone consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 90% RH (non-condensing) |
| Min Storage Temperature: | -20 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 95% RH (non-condensing) |
| Compatibility Information | |
| Designed For: | NETGEAR AGM731F, APS2000W, APS2000Wv2, APS350W, APS920W |
