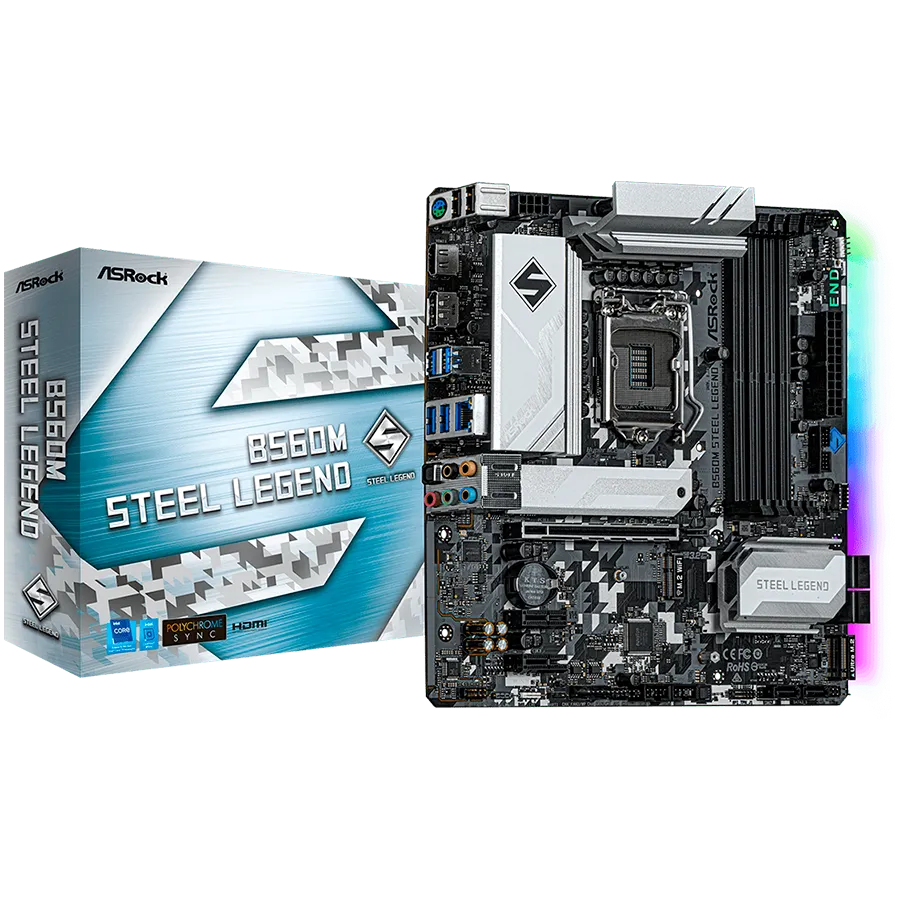

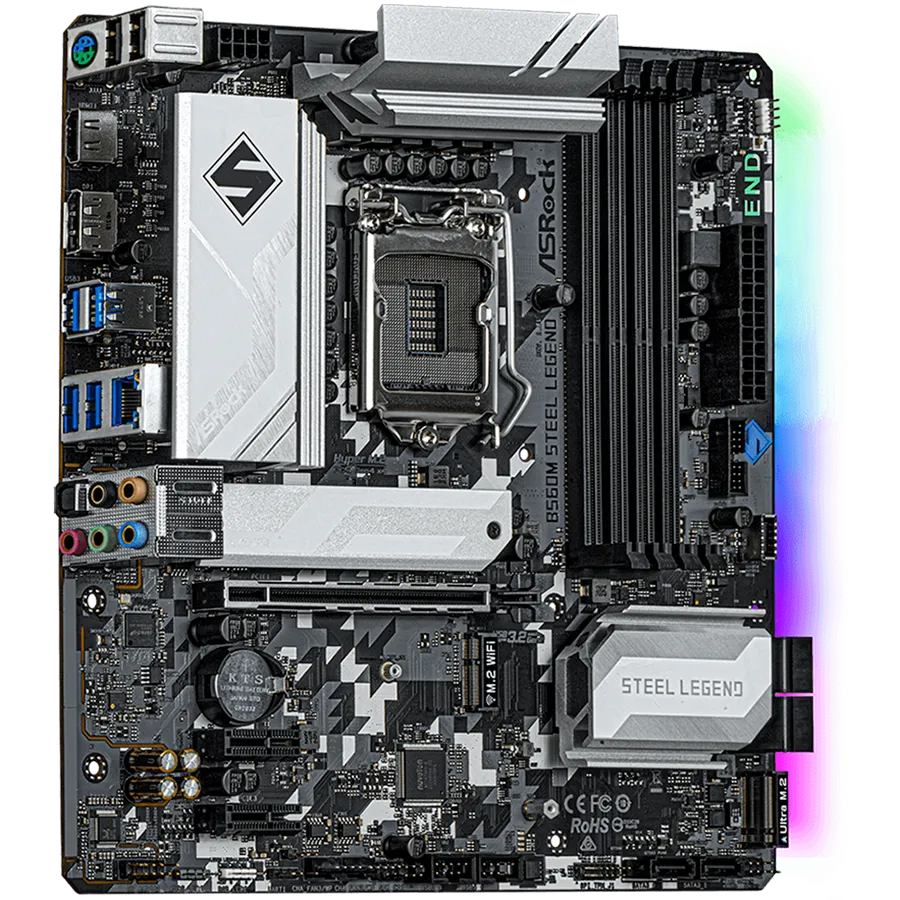

ASROCK Main Board Desktop B560M STEEL LEGEND (S1200, B560, 4xDDR4, 1xPCIe 4.0x16, 2xPCIe 3.0x1, 6xSATA, 1xM.2 PCIe Gen4x4, 1xM.2, 1x USB3.2 Gen2, 6x USB3.2 Gen1, 6x USB2.0, DP, HDMI, 2.5GLAN, POLYCHROME RGB, mATX, Retail)
Парт.№: B560M STEEL LEGEND
Кат.№: 148870
Кат.№: 148870
Цена с ДДС:
204 лв.
Цена с ДДС:
104.30€
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | Intel B560 |
| Supports Central Processor Unit: | Intel 10th Gen Processors Intel 11th Gen Processors |
| CPU Socket Standard: | Socket 1200 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 4800MHz(PC4-38400) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | Two DDR Channels Unbuffered XMP 2.0 |
| Controller | |
| Integrated: | Storage Controller: SATA III-600 (6) Storage Controller: PCIe 3.0 x1/SATA (1 x M.2 (Key E)) |
| Plug-in-card: | Wi-Fi Controller: PCI Express 4.0 x16 (1) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8125B |
| Data Link Protocol Supports: | 2.5 Gbps |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 2 |
| Interface Provided | |
| PS/2: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| DisplayPort: | 1 |
| USB 3.2 Gen 2: | 4 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 5 (3.5-mm minijack) |
| S/PDIF-out: | 1 |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | SMBIOS 2.7 Support PXE boot 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.0 Support |
| Wake up/Sleep: | Wake on LAN |
| Hardware Monitoring: | Chassis Fan Tachometer CPU Fan Tachometer System Voltage |
| Power Connectors Type: | 24+8 pin |
| Miscellaneous | |
| Cable Included: | 6 x SATA Data Cables |
| Included Accessories: | I/O Shield Quick Start Guide Driver CD |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 244 mm |
| Width (mm): | 244 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 1.64 kg |
| Pack Weight Netto (kg): | 0.75 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 16.38 kg |
| Retail Packaging Net Weight Carton: | 0.89 kg |
| Retail Packaging Net Weight Plastic: | 0.89 kg |
| Packs in Box: | 10 |
| Package Type: | Retail |
