Парт.№: B860M_TSM
Кат.№: 141347
Кат.№: 141347
Цена с ДДС:
451 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | LGA1851 socket: Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU |
| Чипсет: | Intel® B860 Express Chipset |
| Памет/тип/: | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Разш. слотове: | CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Сторидж: | CPU:, - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A CPU), Chipset:, - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q SB), - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor-Intel® HD Graphics support:, - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 2.1 version., - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 2.1 version., - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.), Support for up to quad-display at the same time |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings., Support for S/PDIF Out |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

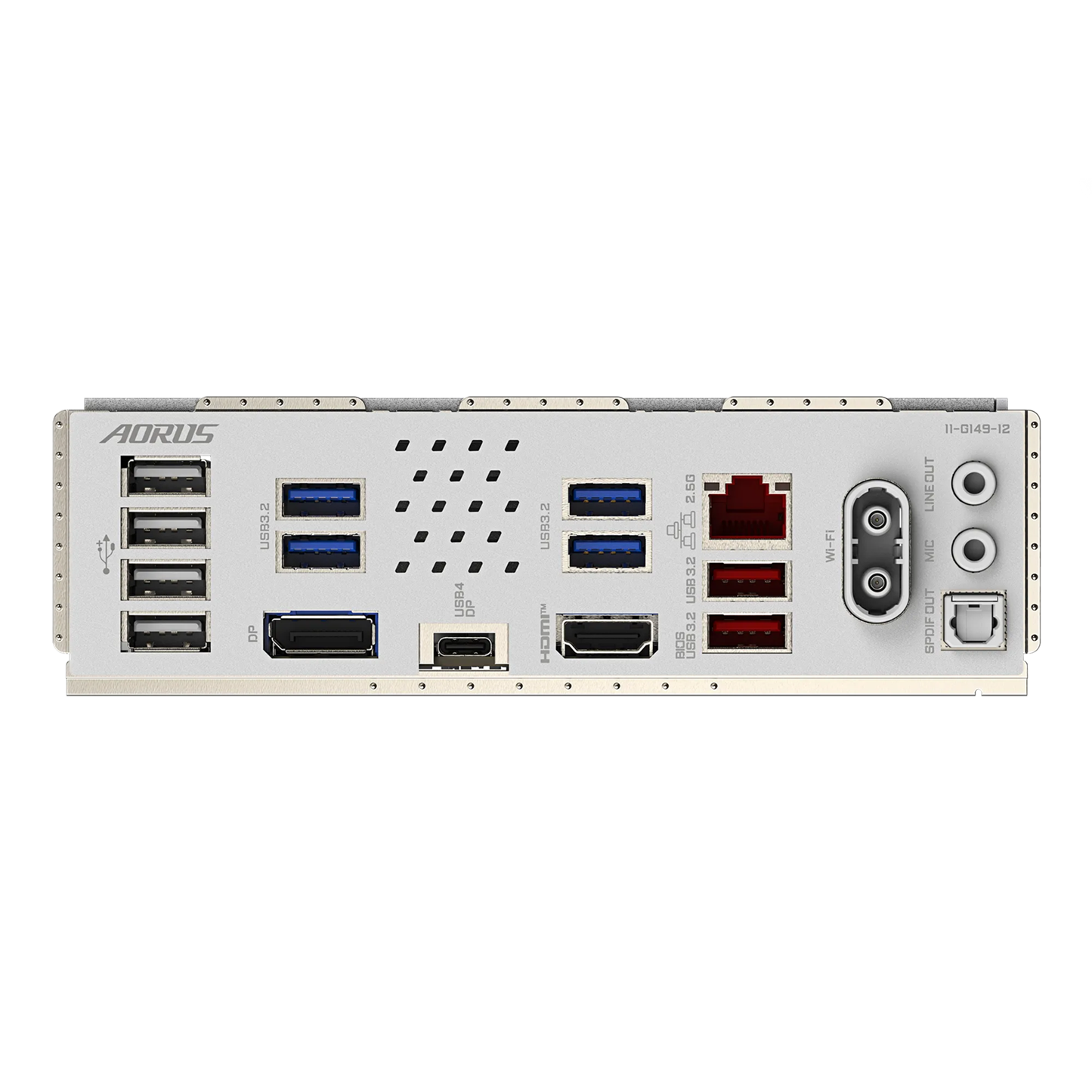

| Конектори: | 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x HDMI port*, 1 x power button, 1 x reset button, 1 x Q-Flash Plusbutton, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors:, 4 x USB 2.0/1.1 ports, 4 x USB 3.2 Gen 1 ports, 1 x DisplayPort*, 1 x USB4® USB Type-C® port (DisplayPort*), 1 x HDMI port*, 1 x RJ-45 port, 2 x USB 3.2 Gen 2 Type-A ports (red), 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Software: Norton® Internet Security (OEM version), LAN bandwidth management software |
| BIOS: | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 1 x USB4® USB Type-C® port on the back panel, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, - 2 x USB 3.2 Gen 1 ports available through the internal USB header, Chipset+USB 3.2 Gen 1 Hub:, - 4 xUSB 3.2 Gen 1 ports on the back panel, Chipset+2 USB 2.0 Hubs:, - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless: | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard, Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard |
| Features: | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bluetooth: | 5.3 |
