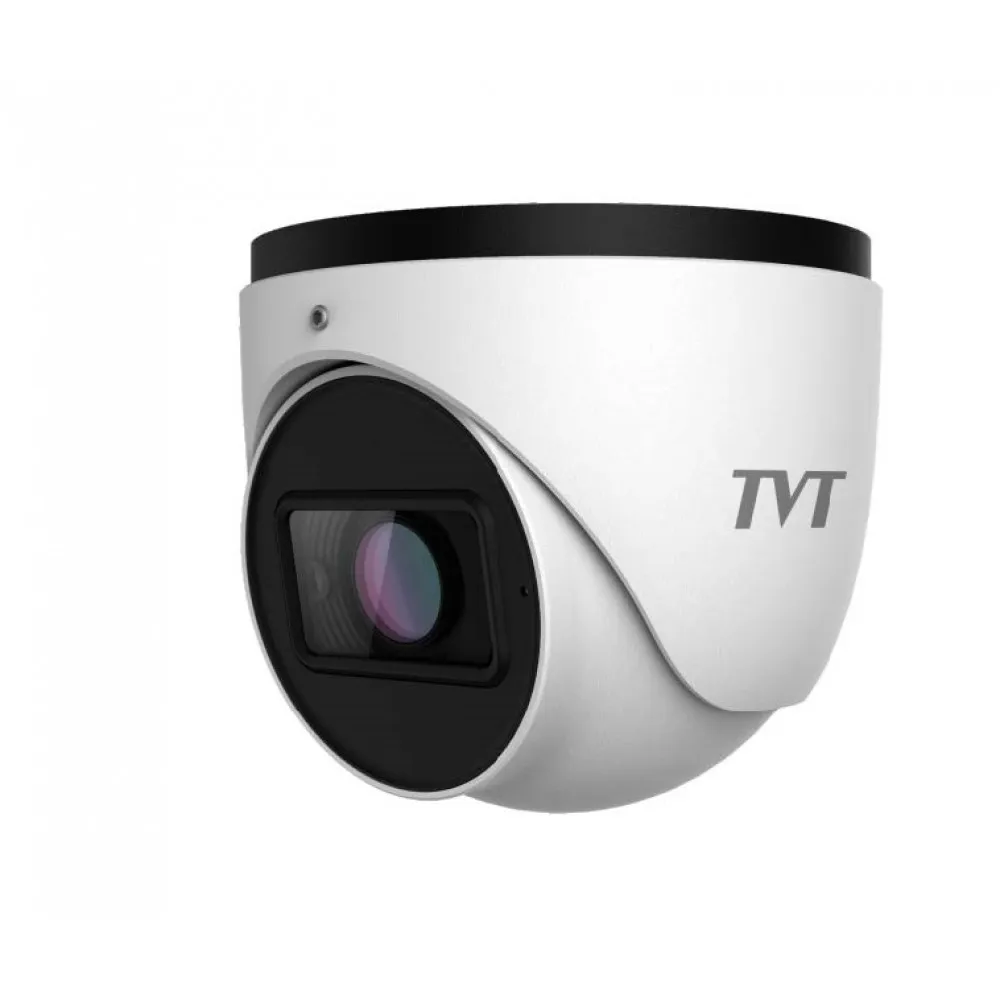

Парт.№: TD-9565E3B-A
Кат.№: 154757
Кат.№: 154757
Цена с ДДС:
178.00 €
Цена с ДДС:
348.14лв.
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
H.265+/H.265/H.264+/H.264/MJPEG coding
Motorized lens：2.8~12mm
Max. resolution: 3296 × 1856
ICR auto switch, true day / night vision
30 ~ 50m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro-SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Specification
H.265+/H.265/H.264+/H.264/MJPEG coding
Motorized lens：2.8~12mm
Max. resolution: 3296 × 1856
ICR auto switch, true day / night vision
30 ~ 50m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro-SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Specification
| Model | TD-9565E3B-A | |||
| Camera | ||||
| Image Sensor | 1 / 2.5 "CMOS | |||
| Image Size | 3296 × 1856 | |||
| Electronic Shutter | 1 / 4 s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.008 lux@F1.6, AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.6, H.FoV: 108°~36°; V.Fov: 57°~20°;D.FoV: 129°~42° | |||
| Focus | Motorized | |||
| Lens Mount | Φ14 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264#br#Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG#br#Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 6MP (3296×1856), 6MP (3200×1800), 5MP (2880×1624), 4MP (2688×1520),#br#1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), CIF, 480×240 | |||
| Main Stream | 6MP/5MP/4MP/1080P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 720P/D1/VGA/CIF/480×240(60Hz: 1 ~ 30fps; 50Hz: 1~25fps) | |||
| Third Stream | D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~ 10 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. #br#adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Intelligent Analytics (Smart Events) | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 66m(218ft) | 27m(87ft) | 13m(44ft) | 7m(23ft) |
| 2.8~12mm(T) | 204m(669ft) | 82m(269ft) | 41m(135ft) | 20m(66ft) |
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 1 CH built-in MIC | |||
| Storage | Built-in micro-SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, HTTP POST, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro-SD card storage | |||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Network disconnected, sensor alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, system config backup, corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | |||
| PoE | Yes, IEEE802.3af | |||
| IR Distance | 30~50 m | |||
| Ingress Protection | IP 67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 10W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions (mm) | Ø111.5 × 99.6 | |||
| Weight (net) | Approx. 0.66KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) | |||
